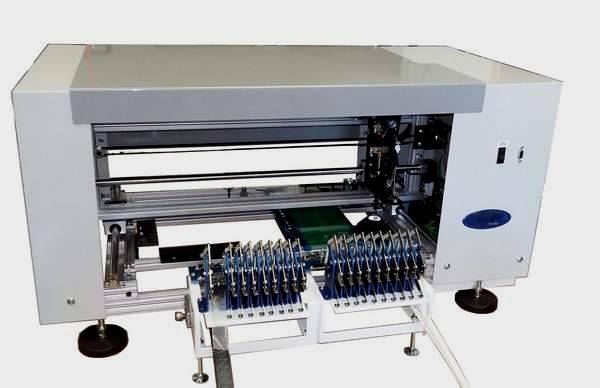

Lab-X1 Automatic Pick Place Machine

Lab-X1 Automatic Pick Place Machine

Regular price $7,650.00
Regular price Sale price $7,650.00
Sale Sold out

Low cost full loaded small desktop automatic pick and place machine

Specifications:

  • Designed for lab, school or personal use.
  • Affordable, light weight and easy to use.
  • Full equipped. Comes with color vision, automatic nozzle changer, one teaching camera mounted on the head, one up looking vision camera to align parts
  • Placement of 0402 and bigger, works for different IC's, TQFP, BGA, SOP,etc.

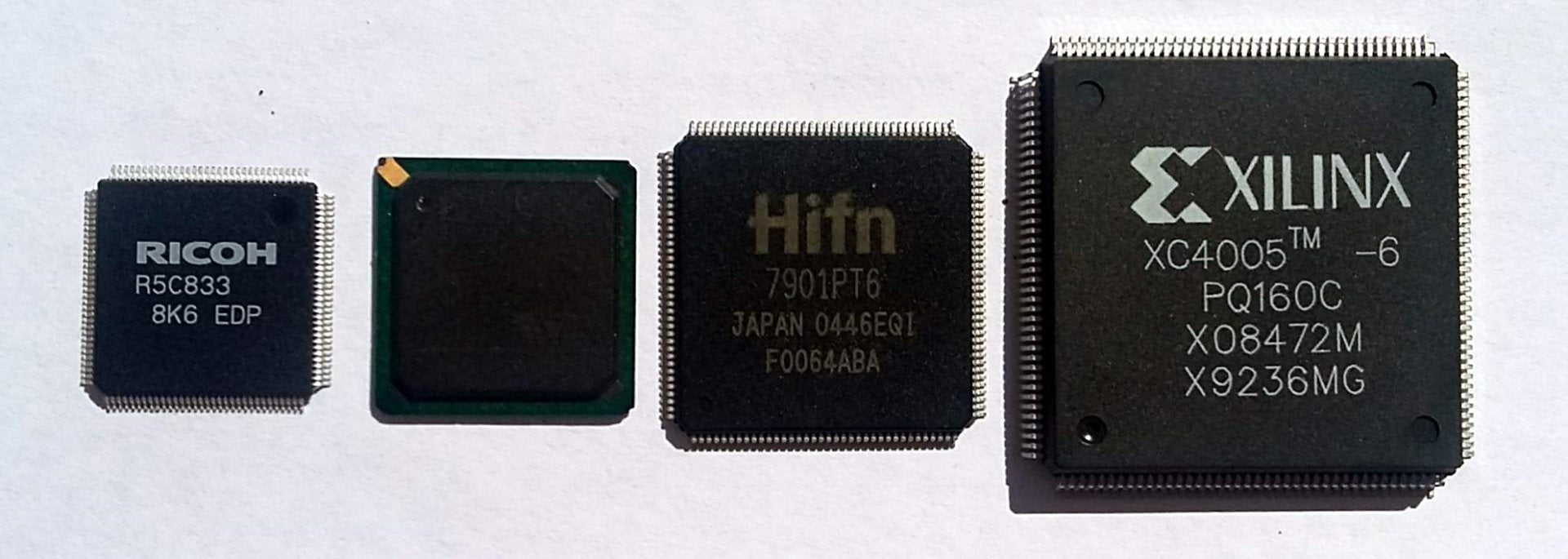

  • Place fine pitch IC's to 25x25mm size, 0.4mm pitch or 30x30mm, 0.5mm pitch with optioanal PLACER-F1
  • Sophisticated software, advanced Smart vision system
  • Detachable feeders, easy to exchange. Included feeders: one SX-3 8mm, nine SX-2 8mm
  • Holds up to 7"x8" PCB (can hold 7"x12" if feeder quantity is reduced).
  • Speed is around 1700 parts per hour.
  • Fully programmable digital Z-axis and Theta rotation angles
  • X and Y axes 0.01mm resolution, 0.045° rotational resolution
  • No programming manual pick place mode
  • Support loose part pick place
  • Not very powerful stepper motors, safe for students or non-professionals to use
  • Automatic PCB board position correction with fiducial recognition
  • One click conversion of PCB software exported files
  • 12 month warranty - parts & labor
  • Machine dimension: 35"x18"x17.5", weight: 60 pounds
  • Great entry level machine; fit perfectly for tight budget
  • Made in USA
Options:
  • Solder paste dispenser: choice of pneumatic or motorized (vision assistance)
  • Pick place 0201 parts
  • Additional up looking vision camera

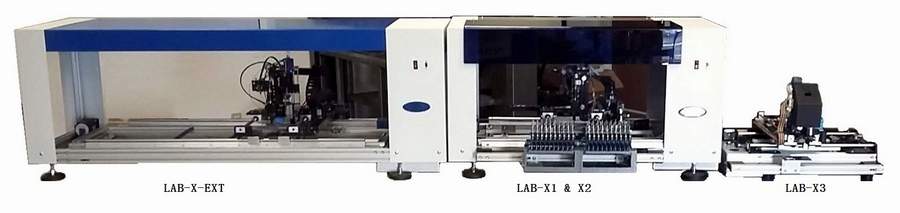

  • Lab-X2 with high speed non-stop fly-over camera
  • Computer
  • Additional feeders
  • Vacuum pump
Free 3D printer STL models for 8mm, 12mm, 16mm, 24mm tape feeders and IC loose part tray (please ask for them)
